Sony DCR-VX2000

RightMark Audio Analyzer test


Testing chain: Line Input recorded to tape
Sampling mode: 16-bit, 48 kHz

Manual gain setting used for test.




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.42, -5.67Poor
Noise level, dB (A): -62.9Poor
Dynamic range, dB (A): 62.9Poor
THD, %: 0.084Average
IMD + Noise, %: 0.287Average
Stereo crosstalk, dB: -6.8Very poor
IMD at 10 kHz, %: 16.491Very poor

General performance: Poor




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-17.13, +0.42
From 40 Hz to 15 kHz, dB-5.67, +0.42




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-61.0-60.9
RMS power (A-weighted), dB:-62.9-62.9
Peak level, dB FS:-46.9-46.4
DC offset, %:-0.00-0.00

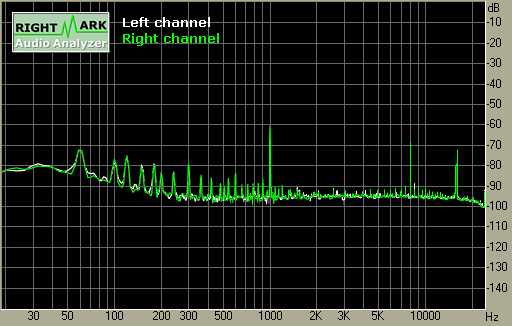

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+61.3+61.2
Dynamic range (A-weighted), dB:+62.9+62.9
DC offset, %:-0.00-0.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.08440.0885
THD + Noise, %:0.18170.1847
THD + Noise (A-weighted), %:0.15750.1621




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.28740.2908
IMD + Noise (A-weighted), %:0.25050.2514




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-7-7
Crosstalk at 1 kHz, dB:-6-6
Crosstalk at 10 kHz, dB:-6-6




IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:3.64792.8281
IMD + Noise at 10 kHz, %:18.146716.9731
IMD + Noise at 15 kHz, %:31.223029.6721

This report was generated by RightMark Audio Analyzer 5.5
